Slide Bearings

AFT Fluorotec have been manufacturing slide bearings for the UK construction industry for many years.
- PTFE Bearing Design

  Browse some of our typical PTFE slide bearing and skidway plate configurations and get in touch to discuss your requirements.
- Selection & installation guide

  PTFE slide bearings can be fixed to the installation by full welding, tack welding, mortar embedment or bolting.

SLIDE BEARINGS

Our PTFE slide bearings are offered in a range of configurations although each is designed to suit the specific application. A typical slide bearing element consists of 2.5mm thick PTFE (reinforced or virgin PTFE) hot cure factory bonded using our proprietary process to a 3mm thick steel backing plate for welding to the installation. Alternative material thicknesses and grades can be supplied to suit any application. Take a look at our typical configurations for more information.

PTFE slide bearings employ either a reinforced or virgin PTFE at the operating surface. Reinforced PTFE can accommodate loads of 18 MPa (184 kg/cm2) and virgin PTFE can accommodate loads of 7 MPa (71 kg/cm2). The load-bearing capacity of these materials can be increased by containing them in a recessed steel backing plate.

We’ve documented some of our typical configurations for PTFE slide bearings and skidway plates below. We also have expertise in tailoring specifications for bespoke projects.

Expand

Key

ASSEMBLY Key

Reinforced PTFE / Virgin PTFE
Polished stainless steel plate
Carbon steel plate / stainless steel plate
Existing substrate

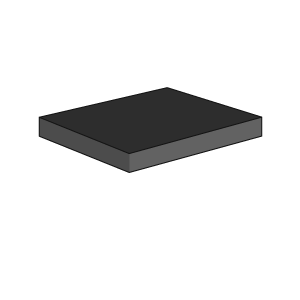

PTFE SLIDE BEARING – RECESSED

TYPICAL CONFIGURATION

Top Sliding Plate - 3mm thick polished stainless steel plate.
Bottom Sliding Plate - 4mm thick Reinforced PTFE / Virgin PTFE bonded into a 2mm deep recess in a 6mm thick carbon steel plate / stainless steel plate.
Method of Installation - Tack welding, full welding, bolting, mortar embedment.
Load Capacity - Reinforced PTFE: 50 MPa (510 kg/cm2), Virgin PTFE: 14 MPa (142 kg/cm2).

Expand

Key

ASSEMBLY Key

Reinforced PTFE / Virgin PTFE
Carbon steel plate / stainless steel plate
Existing substrate

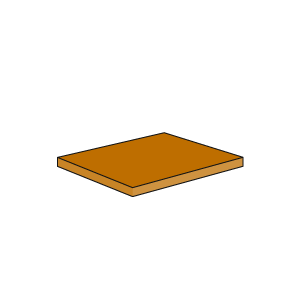

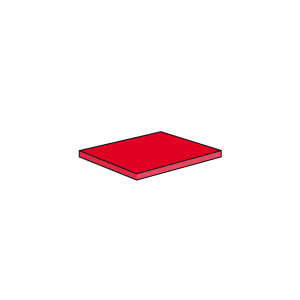

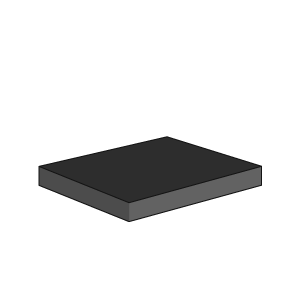

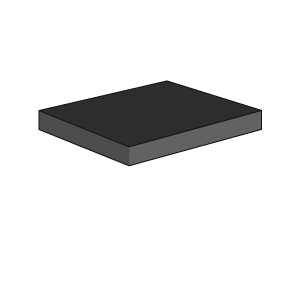

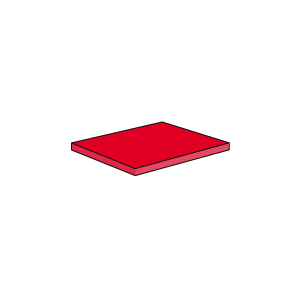

PTFE SLIDE BEARING

TYPICAL CONFIGURATION

Top Sliding Plate - 2.5mm thick Reinforced PTFE / Virgin PTFE bonded to a 3mm thick carbon steel plate / stainless steel plate.
Bottom Sliding Plate - 2.5mm thick Reinforced PTFE / Virgin PTFE bonded to a 3mm thick carbon steel plate / stainless steel plate.
Method of Installation - Tack welding, full welding, bolting, mortar embedment.
Load Capacity - Reinforced PTFE: 18 MPa (184 kg/cm2), Virgin PTFE: 7 MPa (71 kg/cm2).

Expand

Key

ASSEMBLY Key

Reinforced PTFE / Virgin PTFE
Polished stainless steel plate
Carbon steel plate / stainless steel plate
Existing substrate

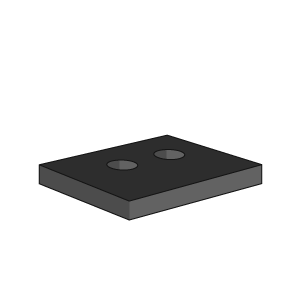

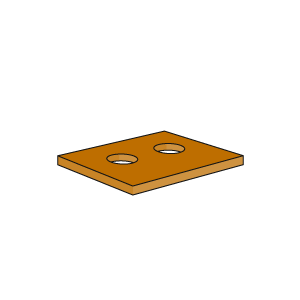

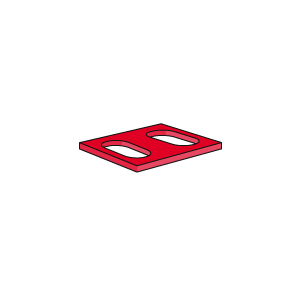

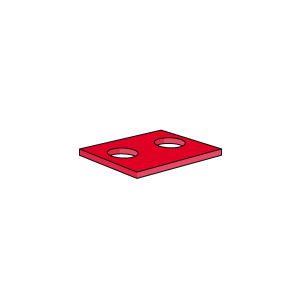

PTFE SLIDE BEARING – BOLTED THRU

TYPICAL CONFIGURATION

Top Sliding Plate - 2.5mm thick Reinforced PTFE / Virgin PTFE bonded to a 3mm thick carbon steel plate / stainless steel plate.
Bottom Sliding Plate - 2.5mm thick Reinforced PTFE / Virgin PTFE bonded to a 3mm thick carbon steel plate / stainless steel plate.
Method of Installation - Bolted through.
Load Capacity - Reinforced PTFE: 18 MPa (184 kg/cm2), Virgin PTFE: 7 MPa (71 kg/cm2).

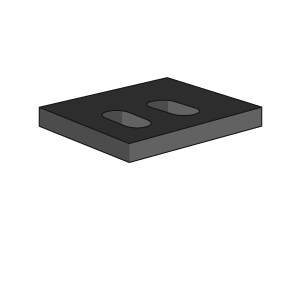

Bolted through slide bearings are the most simple for on site assembly. The slots also control the maximum permitted movement.

Expand

Key

ASSEMBLY Key

Reinforced PTFE / Virgin PTFE
Thermal insulation board
Carbon steel plate / stainless steel plate
Existing substrate

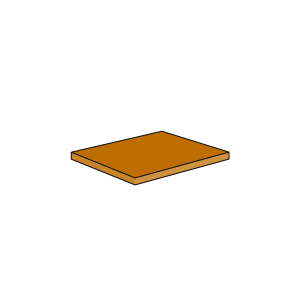

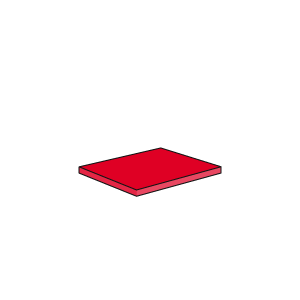

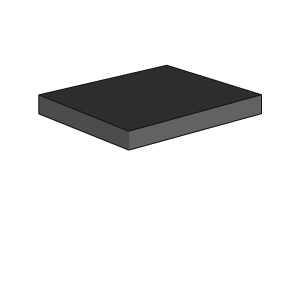

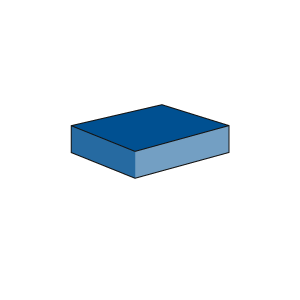

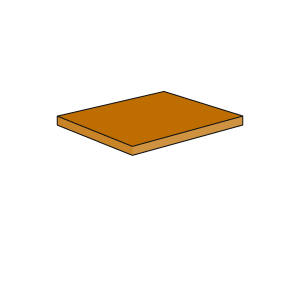

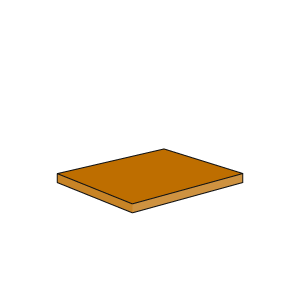

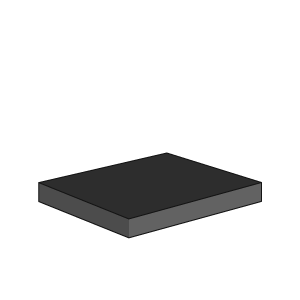

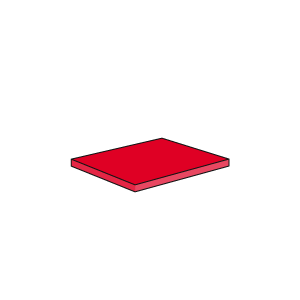

PTFE SLIDE BEARING - THERMALLY INSULATED

TYPICAL CONFIGURATION

Top Sliding Plate - 2.5mm thick Reinforced PTFE / Virgin PTFE bonded to a 3mm thick carbon steel plate / stainless steel plate bonded and mechanically fixed to a 25mm thick thermal insulation board bonded and mechanically fixed to a 3mm thick carbon steel plate / stainless steel plate.
Bottom Sliding Plate - 2.5mm thick Reinforced PTFE / Virgin PTFE bonded to a 3mm thick carbon steel plate / stainless steel plate.
Method of Installation - Tack welding, full welding, bolting.
Load Capacity - Reinforced PTFE: 18 MPa (184 kg/cm2), Virgin PTFE: 7 MPa (71 kg/cm2).

Expand

Key

ASSEMBLY Key

Reinforced PTFE / Virgin PTFE
Polished stainless steel plate
Carbon steel plate / stainless steel plate
Existing substrate

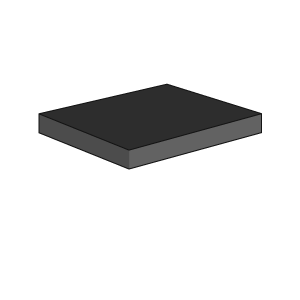

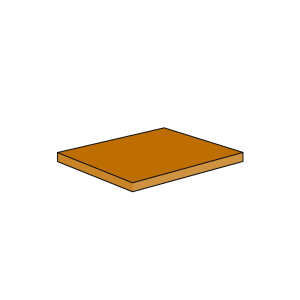

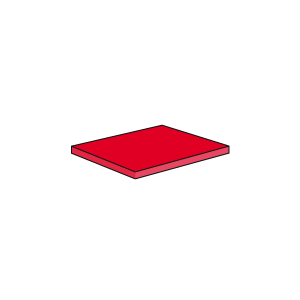

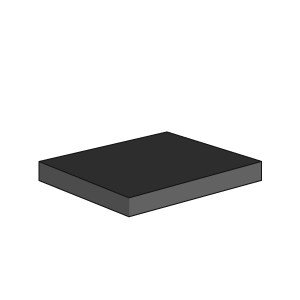

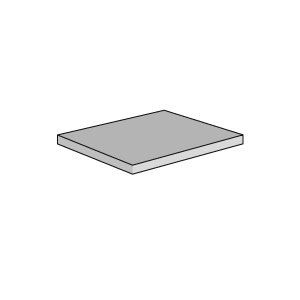

PTFE SLIDE BEARING – COUNTERFACED

TYPICAL CONFIGURATION

Top Sliding Plate - 3mm thick polished stainless steel plate.
Bottom Sliding Plate - 2.5mm thick Reinforced PTFE / Virgin PTFE bonded to a 3mm thick carbon steel plate / stainless steel plate.
Method of Installation - Tack welding, full welding, bolting, mortar embedment.
Load Capacity - Reinforced PTFE: 18 MPa (184 kg/cm2), Virgin PTFE: 7 MPa (71 kg/cm2).

Expand

Key

ASSEMBLY Key

Reinforced PTFE / Virgin PTFE
Elastomeric piece
Carbon steel plate / stainless steel plate
Existing substrate

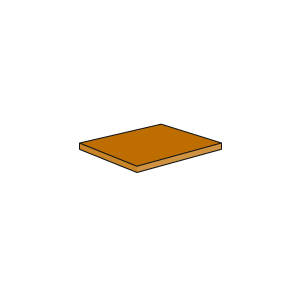

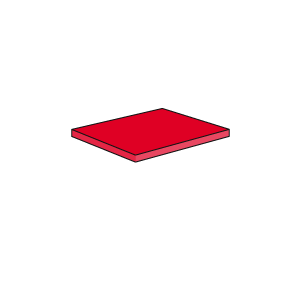

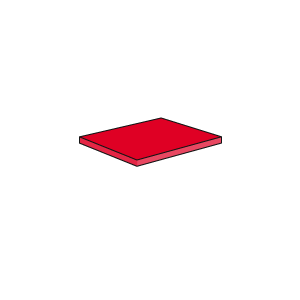

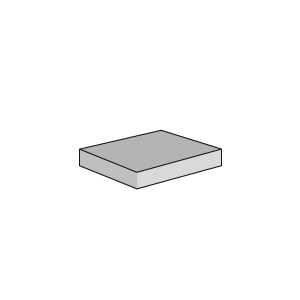

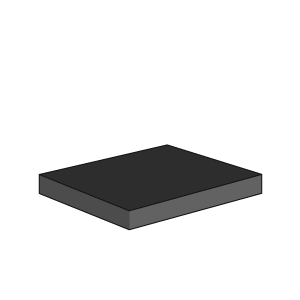

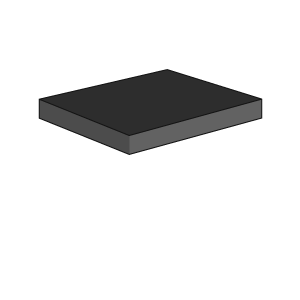

PTFE SLIDE BEARING – ELASTOMERIC

TYPICAL CONFIGURATION

Top Sliding Plate - 2.5mm thick Reinforced PTFE / Virgin PTFE bonded to a 3mm thick carbon steel plate / stainless steel plate.
Bottom Sliding Plate - 2.5mm thick Reinforced PTFE / Virgin PTFE bonded to a 3mm thick carbon steel plate / stainless steel plate vulcanised to a 6mm thick elastomer sheet vulcanised to a 3mm thick carbon steel plate / stainless steel plate.
Method of Installation - Tack welding, full welding, bolting, mortar embedment.
Load Capacity - Reinforced PTFE: 18 MPa (184 kg/cm2), Virgin PTFE: 7 MPa (71 kg/cm2).
